Petzl Mini Traxion
Colour
Size
Size
OS
High-efficiency, openable progress-capture pulley.
Designed for hauling and rescue, MINI TRAXION is an openable progress-capture pulley that allows the rope to be installed while the pulley is connected to the anchor. The large-diameter sheave mounted on sealed ball bearings provides excellent efficiency (93 %). The cam can be locked in the open position so the device can be used as a simple pulley.
Features
• High-efficiency progress-capture pulley designed for hauling and rescue
• Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency (93 %), even when hauling heavy loads
• Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
• For use on 7 to 11 mm diameter ropes
• Openable side plate allows the rope to be easily installed while the pulley is connected to the anchor, limiting the risk of dropping it
• Triple-action opening of the moving side plate is quick and easy, even with gloves
• May be used as a simple pulley by locking the cam in the raised position
• Compact and lightweight (150 g)
• Special side plate design protects the rope path
• Stainless steel toothed cam for optimal durability
Materials
• Aluminum, stainless steel, nylon
Specifications
• Min. rope diameter: 7 mm
• Max. rope diameter: 11 mm
• Sheave type: Sealed ball bearings
• Sheave diameter: 32 mm

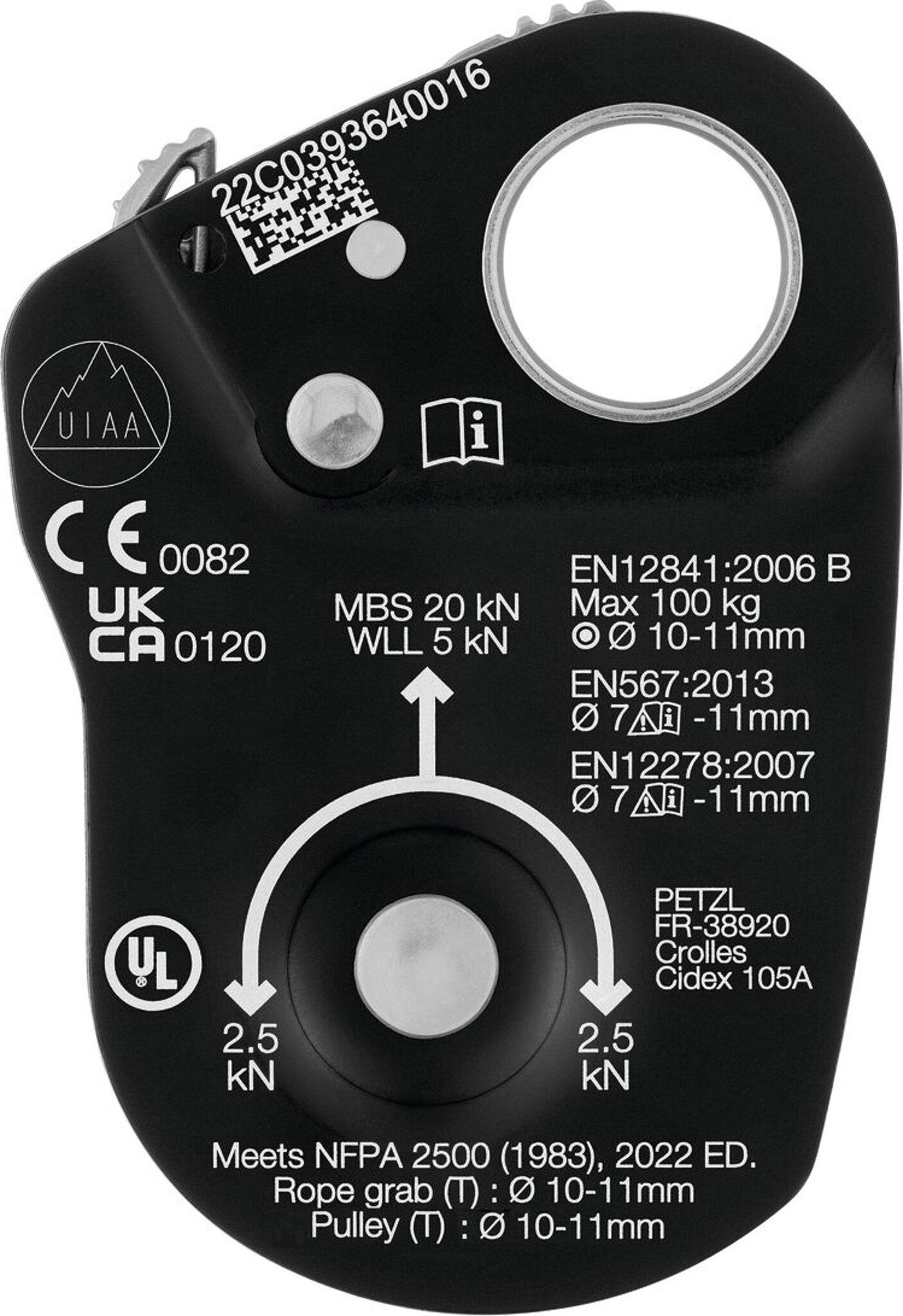

• Working load: 2 x 2.5 = 5 kN
• Breaking strength: 2 x 10 = 20 kN
• Working load as progress capture pulley: 2,5 kN
• Breaking strength as progress capture pulley: 4 kN
• Efficiency: 93 %
• Compatible with the RAD LINE 6 mm cord
• Compatible with the PUR’LINE 6 mm cord only for hauling a pack
